Electrical - Faulty Wiring, Breakers and Fuses

infrared camera detecting wiring issues electrical issues detected

Infrared electrical inspections are completely safe, fast, and very reliable. These inspections are non contact and can be performed at any time of the day without disturbing the occupants or shutting down the electrical supply to your home.

Nearly everything that transmits electricity will get very hot before it finally fails. A cost effective power management is critical to maintaining the reliability of the electrical system throughout your home before it causes a fire. A deficient connection between electrical components can result in resistance, which will manifest in an apparent temperature elevation when compared to similar types of connections under similar load conditions. Electrical hot spots can be identified in many areas throughout your home, which include faulty wiring, overloads at electrical connections and components throughout your home, overloaded or undersized circuits, defective circuit breakers that are in need of immediate replacement, hot branch wiring, defective wall switches and outlets, as well as any loose overheating connections, especially with any aluminum wiring connections.

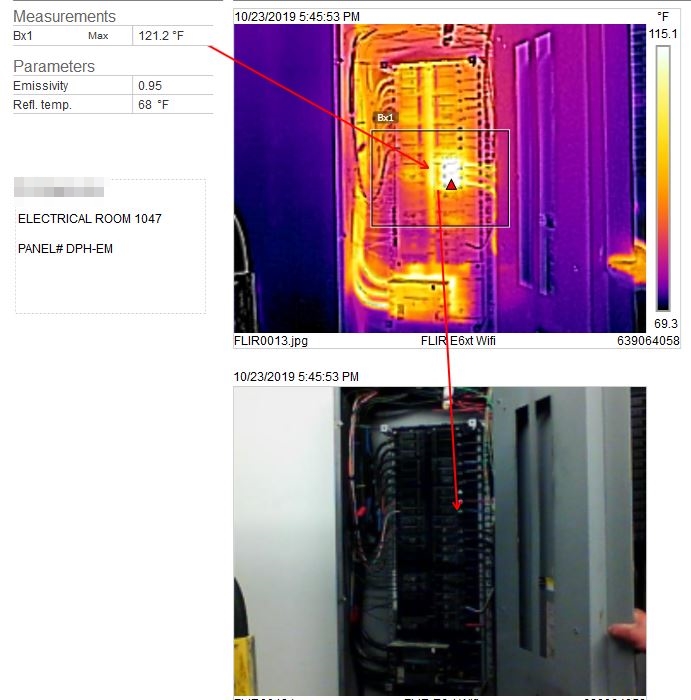

I will safely scan all electrical equipment in and around your home, looking for thermal patterns that indicate a heating anomaly. Most of your electrical connections will always appear as “Hotter” areas, but the more severe heating anomalies will be detected with infrared imaging and this fire safety issue will be brought to your attention immediately. I will then prepare a highly detailed infrared electrical report that will include all thermal and digital images in a side by side comparison format. Your report will detail the absolute temperature measurements, along with outlining the severity of the anomaly. Underneath these images, you will find my recommendations for correcting any dangerous situations.

An undetected electrical weakness in your home can lead to deadly house fires and a catastrophic failure of your electrical system. For the safety of you and your family, I recommend you have your entire electrical system thermally scanned on an annual basis.

infrared line

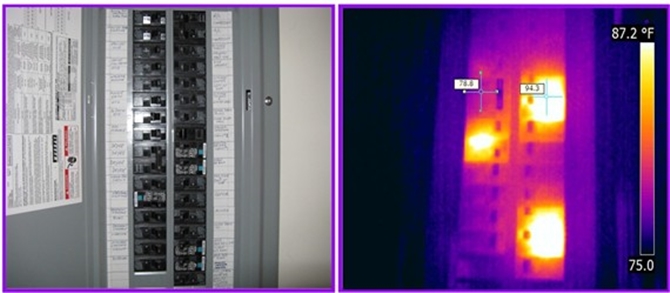

This panel is absolutely fine, but the IR image (on the right) is detecting 3 hot spots. Only an experienced Thermographer will be able to properly interpret those three hot spots as normal temperatures for AFCI and GFCI breakers.

hot electrical detected



infrared line

Now...we've got issues

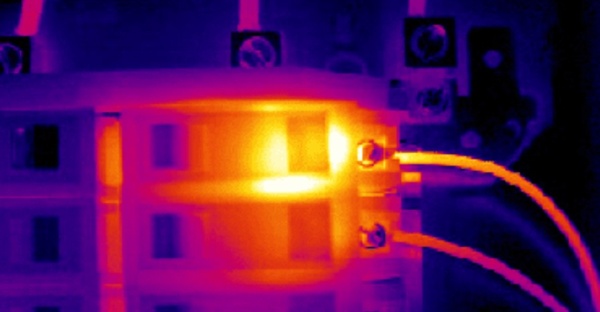

hot breaker detection

infrared line

hot wiring detection
